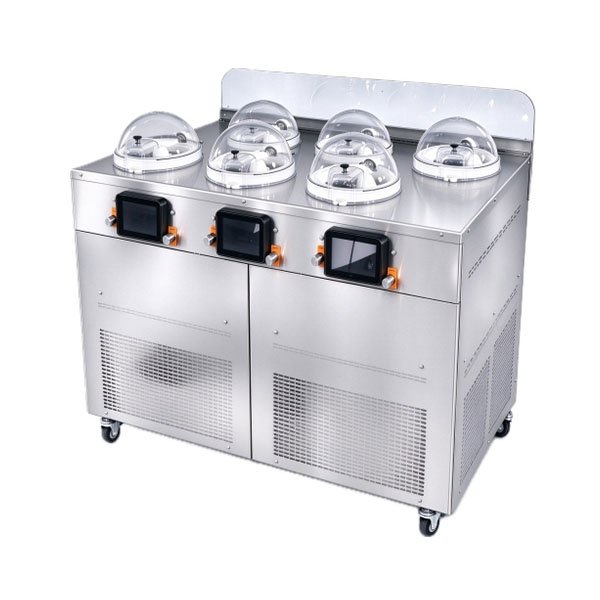

YB8690-DLA 3-in-1 Commercial Gelato Making & Display Machine
The YB8690-DLA is an all-in-one commercial gelato machine that combines making, storing and displaying in a single stainless steel unit. It delivers up to 90 liters per hour, and each flavor has its own temperature control. It suits gelato shops, dessert cafés, hotels and restaurants that want to serve several flavors from a compact footprint.
Need pricing or a custom configuration? Request a quote or chat with us on WhatsApp.
Key Highlights
Product Description
The YB8690-DLA replaces separate gelato-making and display equipment with one integrated unit. No extra equipment is needed, which saves counter and floor space and simplifies daily operation.
Each flavor has an independent temperature control system. You can adjust the temperature and control dispensing flavor by flavor, so one machine can serve several flavors at the same time.
Transparent round domes with built-in LED lighting show the gelato to customers. This makes the product more eye-catching and helps attract customers.
The machine uses high-quality core components. Cooling is 30% faster than traditional equipment, which supports steady, uninterrupted production during busy periods. With an output of 90 L/H, the YB8690-DLA is the higher-capacity model for shops with heavy foot traffic.
Features and Benefits
| Feature | Benefit |
|---|---|
| 3-in-1: make, store, display | Saves space and simplifies workflow |
| Transparent dome with LED lighting | Shows the gelato’s condition and attracts customers |
| Independent temperature control per flavor | Run several flavors at once, each at its ideal temperature |
| High-quality core components, 30% faster cooling | Stable output that meets peak-hour demand |
| Openable lid | Ingredients can be added at any time |
| One-piece stretched cooling cylinder | No hygiene dead corners, meets food-grade hygiene standards |
| Stainless steel body with casters | Durable, easy to clean and easy to reposition |
Technical Specifications
| Parameter | YB8690-DLA |
|---|---|
| Model | YB8690-DLA |
| Cooling Cylinder Capacity | 5 L |
| Ingredient Input per Batch (Min/Max) | 1.5 – 3 L |
| Output | 90 L/H |
| Net Weight | 320 kg |
| Dimensions (W × D × H) | 1500 × 920 × 1060 mm |
| Voltage / Frequency | 380V / 50Hz |
| Power | 7.5 kW |
Applications
Frequently Asked Questions
What is the output capacity of the YB8690-DLA? The YB8690-DLA produces up to 90 liters per hour.
Can I run multiple flavors at the same time? Yes. Each flavor has an independent temperature control system, so you can adjust temperature and control dispensing separately for each one.
Can I add ingredients during operation? Yes. The lid can be opened at any time to add ingredients.
Is the machine easy to clean? Yes. It uses a one-piece stretched cooling cylinder with no hygiene dead corners, in line with food-grade hygiene standards.
What voltage does the machine use? The standard configuration is 380V / 50Hz. If you need a different voltage or plug type for your country, contact us to confirm available options.
How much ingredient mix does each batch need? Each batch takes 1.5 to 3 liters of ingredient mix.
What are the machine’s dimensions and weight? The dimensions are 1500 × 920 × 1060 mm (W × D × H), and the net weight is 320 kg.
How can I get a quote? Send your inquiry through our contact page or message us on WhatsApp. Tell us your target market and the number of flavors you need, and our team will reply with a quotation.
Get a Quote for the YB8690-DLA
Looking for a commercial gelato machine for your shop or restaurant? Visit Yida Catering Equipment to browse more commercial kitchen and dessert equipment, or send us your inquiry and we will get back to you with pricing and shipping details.
