Commercial Ice Cream Display Freezer YD-MR-H6 Series, 12–20 Pans

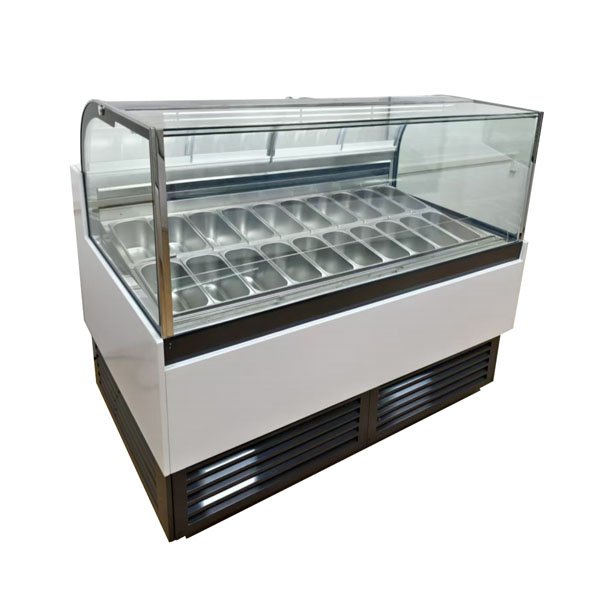

The YD-MR-H6 is a floor-standing commercial ice cream display freezer, also called an ice cream display case or dipping cabinet. It holds scooping pans at -18 to -22°C behind an angled front glass, so customers can see the flavours while staff scoop from the back. The series covers five widths from 1250 mm to 2000 mm, holding 12 to 20 pans, with the same depth and height across all sizes.

Standard configuration is 220V/50Hz with R404A refrigerant. We supply single units and bulk orders from China, and can configure voltage, refrigerant, and finish for your market. Send us the pan count you need, your destination country, and the voltage and refrigerant you require, and we will return a quotation to that specification.

Request a Quote | Chat on WhatsApp

Key Features of the YD-MR-H6 Commercial Ice Cream Display Freezer

Angled front glass The front glass slopes toward the customer side and continues over the top of the display area, giving a clear line of sight to the pans from standing height.

Pans arranged in two rows Pans sit in two rows across the full display width. Customers see the pans clearly from the front, and staff reach them from the service side. Pan details are provided with your quotation.

Front-facing grille at the base The ventilation grille is positioned at the front of the lower cabinet, below the display. Let us know where the unit will stand and we will confirm clearance requirements with your quotation.

Enclosed lower cabinet The display sits on a full-height, solid lower cabinet with a white finish in the standard configuration. Other finishes are discussed via inquiry.

One standard, supplied to your specification Every size in the series shares the same 220V/50Hz, R404A, -18 to -22°C baseline. If your site or market calls for a different voltage, frequency, or refrigerant, state it in your inquiry and the unit is quoted accordingly before the order is confirmed.

YD-MR-H6 Specifications (Standard Configuration)

Figures above are for the standard configuration. Other voltages, frequencies, refrigerants, and finishes are available on request; the final specification is confirmed with your order.

Not sure which size fits your counter? Send your available width to +86 135 3618 8733 on WhatsApp and we will suggest a model.

Typical Applications

• Ice cream parlours and scoop shops that serve from open pans and want the full flavour range visible at the counter.
• Cafés, dessert bars, and bakeries adding a scooped ice cream counter alongside coffee or baked goods.
• Hotels, restaurants, and buffet lines where a dessert station needs a self-contained freezer display.

Configuration Options

• Voltage and frequency: 220V/50Hz as standard; other voltages and 60Hz configurations on request. State the supply at your site in your inquiry.
• Refrigerant: R404A as standard; if your market or your own policy requires a different refrigerant, specify it in your inquiry and we will confirm availability.
• Exterior finish: white as standard; other colours or finishes discussed via inquiry.
• Size and pan count: five widths from 12 to 20 pans; mixed-size orders across the series can be quoted together.
• Order quantity: single units and bulk orders.

MOQ, lead time, packaging, warranty, and certification documents are confirmed with your quotation.

Request a Quote | Chat on WhatsApp

FAQ

How do I choose between 12, 14, 16, 18, and 20 pans? Start from two numbers: the number of flavours you want on display at one time, and the width available at the counter. The series grows in width only; depth (1100 mm) and height (1250 mm) are the same for every model. If your flavour list and your wall space point to different models, tell us both in your inquiry and we will suggest an option.

Do you supply distributors and bulk orders? Yes. We supply single units and bulk orders, and the five sizes in the series can be ordered together under the same voltage, refrigerant, and finish configuration. Quantity, lead time, and pricing are confirmed with your quotation.

What voltage does the YD-MR-H6 come in? Standard is 220V/50Hz. If your site runs on a different voltage or on 60Hz, state the voltage and frequency you require in your inquiry and the unit will be quoted in that configuration.

What refrigerant is used? R404A in the standard configuration. If you need a different refrigerant, tell us which one in your inquiry and we will confirm whether it can be supplied.

Can I use it for gelato or other frozen desserts? The operating range is -18 to -22°C. Whether that suits your specific product depends on the recipe and how you serve it. Let us know in your inquiry and we’ll confirm suitability.

Which certifications are available? Certification requirements differ by market. Tell us which documents you need, and availability is confirmed with your quotation.

What are the MOQ and lead time? Both are confirmed with your quotation, as they depend on the configuration and the quantity requested.

How is the unit packed for shipping? Packaging details are provided with your quotation, together with shipping dimensions and weight for freight planning.

What is the fastest way to get a price? Message +86 135 3618 8733 on WhatsApp with the model number, your destination country, the voltage and refrigerant you require, and the quantity. The inquiry form works equally well if you prefer email.

Request a Quote

To receive a quotation, please include the following in your message:

• Model or pan count (12, 14, 16, 18, or 20 pans)
• Destination country
• Voltage and frequency at your site
• Refrigerant you require, if different from R404A
• Quantity
• Any other requirements, such as finish, certification documents, or delivery terms

We will reply with a quotation to that specification.

Send an Inquiry

Or message us on WhatsApp: +86 135 3618 8733
