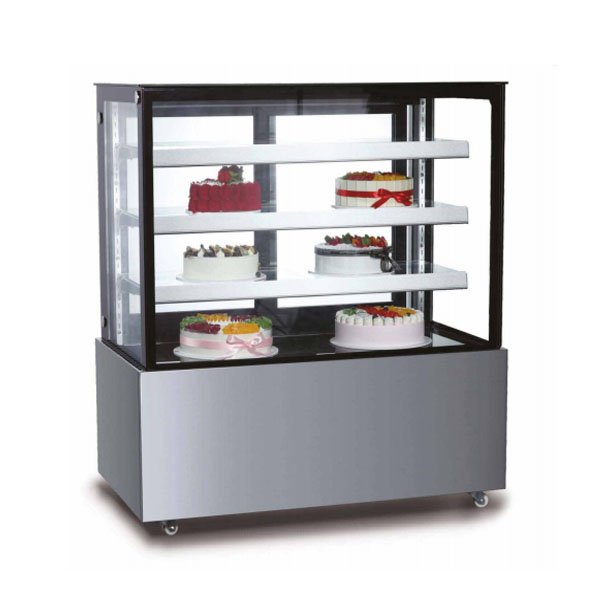

Floor Standing Refrigerated Cake Showcase YD-FT-Z Series

Floor Standing Refrigerated Cake Showcase YD-FT-Z Series

Present cakes, pastries and chilled desserts at their best with the YD-FT-Z series floor standing cake showcase. LED lighting on every shelf and the top, double tempered glass and a ventilated cooling system keep your products visible and fresh. The series suits bakeries, cafés, restaurants, hotels and dessert shops.

Available models: YD-FT-275Z, YD-FT-375Z, YD-FT-475Z and YD-FT-575Z.

Key Features

Brilliant internal LED lighting on each shelf and the top
Double tempered glass for clear visibility and good insulation
2 adjustable glass shelves
Digital temperature control and display
Temperature range of 2–8°C (35.6–46.4°F)
Ventilated cooling system for even temperature distribution
Automatic defrost
R290 refrigerant
4 castors, 2 with brakes, for easy positioning and cleaning

Product Description

The YD-FT-Z series floor standing cake showcase is designed for food service businesses that need to keep cakes chilled while displaying them attractively. The full glass design and LED lighting give customers a clear view of cakes, mousses, cheesecakes and pastries from every angle.

A ventilated cooling system circulates cold air through the cabinet and holds the temperature between 2°C and 8°C (35.6°F–46.4°F). A digital controller shows the cabinet temperature, and the automatic defrost function reduces routine maintenance.

Double tempered glass provides strength and thermal insulation. Each shelf and the top have their own LED lighting, so every tier is well lit. The two glass shelves are adjustable, so you can arrange the interior for whole cakes, slices or boxed products.

The series comes in four widths, from 925 mm to 1825 mm (36.5″–71.9″), with gross capacities from 390 L to 810 L. All models share the same height of 1405 mm (55.4″) and depth of 686 mm (27.0″).

Four castors, two of them with brakes, let you move the unit and clean underneath it.

Optional Upgrades

Air duct outside the glass to remove fog
Heating glass
Artificial stone frame

Applications

Bakeries, cake shops, cafés, restaurants, hotels, supermarkets, convenience stores, dessert shops and catering businesses.

Specifications

Model	YD-FT-275Z	YD-FT-375Z	YD-FT-475Z	YD-FT-575Z
Gross Capacity	390 L / 13.78 cu.ft	530 L / 18.72 cu.ft	670 L / 23.67 cu.ft	810 L / 28.61 cu.ft
Temperature Range	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)
Rated Input Power	520 W	540 W	540 W	600 W
Refrigerant	R290	R290	R290	R290
Climate Class	4	4	4	4
Overall Dimensions (mm)	925 × 686 × 1405	1225 × 686 × 1405	1525 × 686 × 1405	1825 × 686 × 1405
Overall Dimensions (inch)	36.5 × 27.0 × 55.4	48.3 × 27.0 × 55.4	60.0 × 27.0 × 55.4	71.9 × 27.0 × 55.4
Package Dimensions (mm)	1025 × 765 × 1510	1325 × 765 × 1510	1625 × 765 × 1510	1925 × 765 × 1510
Package Dimensions (inch)	40.4 × 30.2 × 59.5	52.2 × 30.2 × 59.5	64.0 × 30.2 × 59.5	75.8 × 30.2 × 59.5
Net Weight	162 kg / 356.4 lbs	195 kg / 442.4 lbs	229 kg / 503.8 lbs	245 kg / 539 lbs
Gross Weight	190 kg / 418 lbs	229 kg / 503.8 lbs	252 kg / 554.4 lbs	290 kg / 638 lbs
20′ Container	16	12	10	8
40′ Container	32	25	21	18
40′ Container (High Cube)	32	25	21	18

Frequently Asked Questions

What temperature range does the cake showcase maintain? The YD-FT-Z series maintains 2–8°C (35.6–46.4°F), suitable for most cakes and chilled desserts.

What refrigerant does it use? It uses R290 refrigerant.

Does the showcase have automatic defrost? Yes. It features automatic defrost and a ventilated cooling system.

How many shelves are included? Two adjustable glass shelves are included as standard.

Can glass fogging be reduced? Yes. An air duct outside the glass and heating glass are available as options.

Can the showcase be moved easily? Yes. It has 4 castors, 2 of which have brakes.

What sizes are available? Four models are available: YD-FT-275Z (390 L), YD-FT-375Z (530 L), YD-FT-475Z (670 L) and YD-FT-575Z (810 L).

How can I get a quote? Send us your requirements through our inquiry form or message us on WhatsApp, and our team will reply with pricing and shipping details.

Get a Quote

Looking for a refrigerated cake display case for your business? Contact Yida Catering Equipment through our contact page or chat with us on WhatsApp at +86 135 3618 8733.
