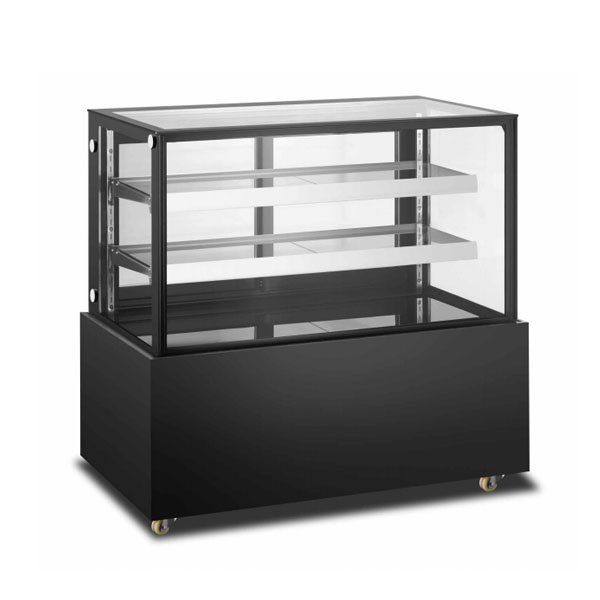

Floor Standing Refrigerated Cake Display Case

Floor Standing Refrigerated Bakery Display Case for Cakes, Pastries and Desserts

The YD-FT-Z Series is a floor standing refrigerated bakery display case designed to present cakes, pastries and desserts while keeping them chilled. Double tempered glass panels and LED lighting on every shelf give customers a clear view of each product from every angle. A digital controller holds a stable 2–8°C (35.6–46.4°F), so the unit works as a cake display fridge, cake refrigerator, pastry display case or dessert display case in one cabinet.

The series is available in four widths, from 905 mm to 1805 mm. It fits bakery counters, coffee shop display cases, restaurants, hotels and supermarkets. Every model uses R290 refrigerant and a ventilated cooling system with automatic defrost. To discuss your requirements, request a quote or message us on WhatsApp.

Key Features

LED lighting on each shelf: Cakes, mousse and pastries stay bright and attractive, which helps drive impulse sales from your bakery showcase.
Double tempered glass: A glass bakery display case with a clear view and strong, safe panels for daily commercial use.
2 adjustable glass shelves: Adjust the layout for tall cakes, cake boxes, tarts and small desserts.
Digital temperature control and display: Set and monitor the temperature within 2–8°C, as required for a refrigerated pastry case or cold display case.
Ventilated cooling system: Spreads cold air evenly through the display area.
Automatic defrost: Reduces manual maintenance on a bakery refrigerator used every day.
R290 refrigerant: An environmentally friendly refrigerant with good energy efficiency.
4 castors, 2 with brakes: Move the cake display refrigerator for cleaning, then lock it firmly in place.

Reliable Refrigeration for Bakery Display

A refrigerated bakery display case has to protect products and sell them. The ventilated cooling system circulates cold air through the cabinet, and the digital controller keeps the temperature in the 2–8°C range. Automatic defrost runs on its own, so the cake fridge keeps performing during busy trading hours. The floor standing design gives you generous display space without using counter space.

Optional Configurations

Air duct outside the glass: Helps remove fog and condensation, so the glass of your bakery display refrigerator stays clear.
Heating glass: Reduces condensation on the glass in humid environments.
Artificial stone frame: A more premium finish for upscale bakeries, dessert shops and hotel buffets.

Technical Specifications

Model	YD-FT-270Z	YD-FT-370Z	YD-FT-470Z	YD-FT-570Z
Capacity (Gross)	300 L / 10.60 cu.ft	410 L / 14.48 cu.ft	510 L / 18.02 cu.ft	610 L / 21.55 cu.ft
Temperature Range	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)
Rated Input Power	480 W	490 W	490 W	500 W
Refrigerant	R290	R290	R290	R290
Climate Class	4	4	4	4
Net Weight	135 kg / 297 lbs	155 kg / 341 lbs	182 kg / 400.4 lbs	225 kg / 495 lbs
Gross Weight	154 kg / 338.8 lbs	188 kg / 413.6 lbs	230 kg / 506 lbs	260 kg / 572 lbs
Overall Dimensions (mm)	905 × 677 × 1205	1205 × 677 × 1205	1505 × 677 × 1205	1805 × 677 × 1205
Overall Dimensions (inch)	35.7 × 26.7 × 47.5	47.5 × 26.7 × 47.5	59.3 × 26.7 × 47.5	71.1 × 26.7 × 47.5
Package Dimensions (mm)	1025 × 765 × 1310	1325 × 765 × 1310	1625 × 765 × 1310	1925 × 765 × 1310
Package Dimensions (inch)	40.4 × 30.2 × 51.6	52.2 × 30.2 × 51.6	64.0 × 30.2 × 51.6	75.8 × 30.2 × 51.6
20′ Container	16	12	10	8
40′ Container	32	25	21	18
40′ High Cube	64	50	42	36

Applications

Bakeries and patisseries: a refrigerated bakery case for cakes, mousse and pastries
Coffee shops and cafés: a coffee shop display case for desserts and sandwiches
Restaurants and dessert bars: a dessert refrigerator for plated and boxed desserts
Hotels and buffets: a cold food display case for chilled items
Supermarkets and convenience stores: a refrigerated food display case for ready-to-eat products
Catering and event venues

Frequently Asked Questions

What temperature does this refrigerated bakery display case maintain? All models operate at 2–8°C (35.6–46.4°F), which suits cakes, mousse, pastries and other chilled desserts.

Can it be used as a pastry display case or dessert display case? Yes. The 2 adjustable glass shelves and the 2–8°C temperature range suit pastries, tarts, desserts and cake boxes.

Is it a cake fridge or a cake freezer? It is a chilled cake display fridge for 2–8°C. It is not a freezer and is not intended for frozen storage.

What refrigerant does the cake display refrigerator use? All models use R290 refrigerant.

Does the bakery refrigerator have automatic defrost? Yes. Automatic defrost is standard on all models.

How can I reduce fogging on the glass? Choose the optional air duct outside the glass or the heating glass.

Can the unit be moved? Yes. It has 4 castors, 2 of them with brakes.

How can I get a quotation? Send your requirements through our contact form or contact us on WhatsApp. We will reply with pricing and delivery details.

Get a Quote for Your Refrigerated Cake Showcase

Tell us the model, quantity and destination, and we will send you a quotation. Contact us here or chat with us on WhatsApp: +86 135 3618 8733.
