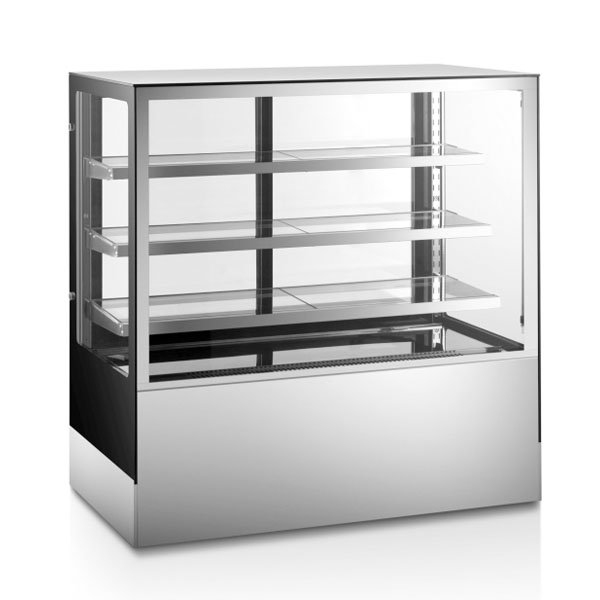

Straight Glass Floor Standing Refrigerated Cake Showcase YD-FT-Z Series, 3 Shelves

Straight Glass Floor Standing Refrigerated Cake Showcase YD-FT-Z Series, 3 Shelves

Present cakes, pastries and chilled desserts with this floor standing cake showcase. The straight glass design, LED lighting on every shelf and the top, and three adjustable glass shelves give you a bright, well-organized display. A ventilated cooling system keeps products fresh. The series suits bakeries, cafés, restaurants, hotels and dessert shops.

Available models: YD-FT-380Z, YD-FT-520Z, YD-FT-620Z and YD-FT-720Z.

Key Features

Straight glass design for a clear view of the display
Brilliant internal LED lighting on each shelf and the top
3 adjustable glass shelves
Double tempered glass
Digital temperature control and display
Temperature range of 2–8°C (35.6–46.4°F)
Ventilated cooling system
Automatic defrost
R290 refrigerant
4 castors, 2 with brakes

Product Description

This floor standing cake showcase is designed for food service businesses that need to keep cakes chilled while displaying them attractively. The straight glass front and LED lighting give customers a clear view of cakes, mousses, cheesecakes and pastries.

A ventilated cooling system circulates cold air through the cabinet and holds the temperature between 2°C and 8°C (35.6°F–46.4°F). A digital controller shows the cabinet temperature, and the automatic defrost function reduces routine maintenance.

Double tempered glass provides strength and thermal insulation. Each shelf and the top have their own LED lighting, so every tier is well lit. The three glass shelves are adjustable, so you can arrange the interior for whole cakes, slices or boxed products.

The series comes in four widths, from 900 mm to 1800 mm (35.4″–70.9″), with gross capacities from 380 L to 795 L. All models share the same height of 1245 mm (49″) and depth of 700 mm (27.6″).

Four castors, two of them with brakes, let you move the unit and clean underneath it.

Optional Upgrade

Heating glass

Applications

Bakeries, cake shops, cafés, restaurants, hotels, supermarkets, convenience stores, dessert shops and catering businesses.

Specifications

Model	YD-FT-380Z	YD-FT-520Z	YD-FT-620Z	YD-FT-720Z
Gross Capacity	380 L / 13.42 cu.ft	520 L / 18.36 cu.ft	660 L / 23.31 cu.ft	795 L / 28.08 cu.ft
Temperature Range	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)
Rated Input Power	380 W	420 W	450 W	520 W
Refrigerant	R290	R290	R290	R290
Climate Class	4	4	4	4
Overall Dimensions (mm)	900 × 700 × 1245	1200 × 700 × 1245	1500 × 700 × 1245	1800 × 700 × 1245
Overall Dimensions (inch)	35.4 × 27.6 × 49	47.2 × 27.6 × 49	59.1 × 27.6 × 49	70.9 × 27.6 × 49
Package Dimensions (mm)	970 × 770 × 1330	1270 × 770 × 1330	1570 × 770 × 1330	1870 × 770 × 1330
Package Dimensions (inch)	38.2 × 30.3 × 52.4	50.0 × 30.3 × 52.4	61.8 × 30.3 × 52.4	73.6 × 30.3 × 52.4
Net Weight	135 kg / 297.6 lbs	192 kg / 423.3 lbs	225 kg / 496 lbs	265 kg / 584.2 lbs
Gross Weight	170 kg / 374.8 lbs	230 kg / 507.1 lbs	255 kg / 562.2 lbs	295 kg / 650.4 lbs
20′ Container	17	12	10	9
40′ Container	35	27	21	18
40′ Container (High Cube)	70	54	42	36

Frequently Asked Questions

What temperature range does the cake showcase maintain? This series maintains 2–8°C (35.6–46.4°F), suitable for most cakes and chilled desserts.

What refrigerant does it use? It uses R290 refrigerant.

Does the showcase have automatic defrost? Yes. It features automatic defrost and a ventilated cooling system.

How many shelves are included? Three adjustable glass shelves are included as standard.

Can glass fogging be reduced? Yes. Heating glass is available as an option.

Can the showcase be moved easily? Yes. It has 4 castors, 2 of which have brakes.

What sizes are available? Four models are available: YD-FT-380Z (380 L), YD-FT-520Z (520 L), YD-FT-620Z (660 L) and YD-FT-720Z (795 L).

How can I get a quote? Send us your requirements through our inquiry form or message us on WhatsApp, and our team will reply with pricing and shipping details.
