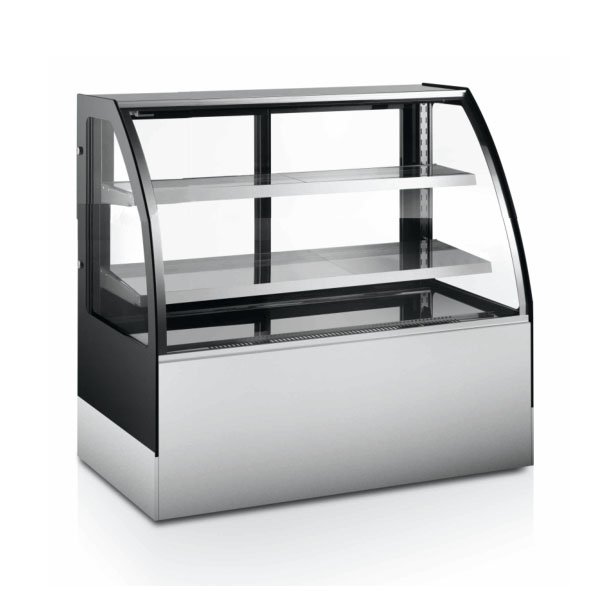

Refrigerated Cake Display Case with Curved Glass and LED Lighting
Present cakes, pastries and chilled desserts with a clear view from every angle. This floor standing refrigerated cake display case has curved double tempered glass and bright LED lighting on every shelf and on the top. A digital controller holds the temperature between 2°C and 8°C, so it works as a reliable cake fridge and pastry refrigerator for daily trading. It is available in four widths: 900 mm, 1200 mm, 1500 mm and 1800 mm.
Request a Quote | Chat on WhatsApp
Product Overview
The YD-FT series is a refrigerated bakery display case for shops that sell cakes, pastries and desserts. The curved front glass gives customers a wide, clear view of the products and suits modern shop interiors. Two adjustable glass shelves let you arrange cakes, mousse cups, sandwiches and desserts of different heights.
Whether you need a bakery display case for a retail shop, a pastry display case for a café or a dessert display case for a restaurant, the four sizes cover small to large display needs. Each model is a complete bakery refrigerator with its own cooling system, so no separate refrigeration equipment is required.
The ventilated cooling system distributes cold air evenly across the shelves. Automatic defrost reduces daily maintenance. Four castors, two of them with brakes, make the cabinet easy to move for cleaning and keep it stable once locked.
Key Features
| Feature | Benefit |
|---|---|
| LED lighting on each shelf and top | Shows cakes and desserts clearly and attractively |
| Curved double tempered glass | Wide viewing angle, good insulation and safety |
| 2 adjustable glass shelves | Flexible layout for products of different heights |
| Digital temperature control and display | Easy setting and monitoring within 2-8°C |
| Ventilated cooling system | Even temperature distribution across shelves |
| Automatic defrost | Less manual maintenance |
| 4 castors, 2 with brakes | Easy to move and stable when locked |
| R290 refrigerant | Natural refrigerant with low environmental impact |
Technical Specifications
| Specification | YD-FT-360R | YD-FT-510R | YD-FT-610R | YD-FT-710R |
|---|---|---|---|---|
| Gross Capacity | 300 L / 10.59 cu.ft | 410 L / 14.48 cu.ft | 515 L / 18.19 cu.ft | 625 L / 22.07 cu.ft |
| Temperature Range | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) |
| Rated Input Power | 380 W | 420 W | 450 W | 520 W |
| Refrigerant | R290 | R290 | R290 | R290 |
| Climate Class | 4 | 4 | 4 | 4 |
| Overall Dimensions (mm) | 900 × 700 × 1200 | 1200 × 700 × 1200 | 1500 × 700 × 1200 | 1800 × 700 × 1200 |
| Overall Dimensions (inch) | 35.4 × 27.6 × 47.2 | 47.2 × 27.6 × 47.2 | 59.1 × 27.6 × 47.2 | 70.9 × 27.6 × 47.2 |
| Net Weight | 115 kg / 253.5 lbs | 159 kg / 350.5 lbs | 195 kg / 429.9 lbs | 225 kg / 496 lbs |
| Gross Weight | 140 kg / 308.6 lbs | 189 kg / 416.7 lbs | 235 kg / 518.1 lbs | 265 kg / 584.2 lbs |
| Package Size (mm) | 970 × 770 × 1310 | 1270 × 770 × 1310 | 1570 × 770 × 1310 | 1870 × 770 × 1310 |
| Package Size (inch) | 38.2 × 30.3 × 51.6 | 50 × 30.3 × 51.6 | 61.8 × 30.3 × 51.6 | 73.6 × 30.3 × 51.6 |
Standard Configuration
Optional Configuration
Heating Glass Option
Heating glass helps keep the front glass clear in humid environments, so products stay visible. Please mention this option when requesting a quote.
Applications
This glass bakery display case suits many food service and retail settings:
What You Can Display
Container Loading Quantity
| Model | 20′ Container | 40′ Container | 40′ High Cube |
|---|---|---|---|
| YD-FT-360R | 17 | 35 | 70 |
| YD-FT-510R | 12 | 27 | 54 |
| YD-FT-610R | 10 | 21 | 42 |
| YD-FT-710R | 9 | 18 | 36 |
Frequently Asked Questions
What temperature range does the refrigerated cake display case support? It operates between 2°C and 8°C (35.6°F to 46.4°F). This suits cakes, mousse, pastries and other chilled desserts.
Is this a refrigerated or non-refrigerated display case? It is a refrigerated display case with an active cooling system. It is not a non-refrigerated or ambient display unit.
What is the difference between the four models? All models share the same features, a depth of 700 mm and a height of 1200 mm. They differ in width (900, 1200, 1500 or 1800 mm), gross capacity (300 L to 625 L) and rated power (380 W to 520 W).
Is this cake display fridge fan-cooled? Yes. It uses a ventilated cooling system with automatic defrost for even temperature distribution.
Can I use it as a dessert fridge or pastry fridge? Yes. Besides cakes, it suits mousse cups, puddings, pastries, sandwiches and other chilled items that need storage at 2-8°C.
Is it suitable for a coffee shop or bakery? Yes. The curved glass and LED lighting make it a good fit as a bakery refrigerator or coffee shop display case where products need to be seen from the customer side.
What refrigerant does it use? All models use R290, a natural refrigerant with low environmental impact.
Can the cabinet be moved easily? Yes. It has four castors, two of them with brakes. You can move it for cleaning and lock it in place during use.
Is anti-fog glass available? Yes. Heating glass is available as an option.
How can I get a quote? Send your requirements through our contact form or message us on WhatsApp. Our team will reply with pricing and shipping details.
Looking for more refrigerated display equipment? Browse the full range at Yida Catering Equipment, or contact our team for a quotation.
