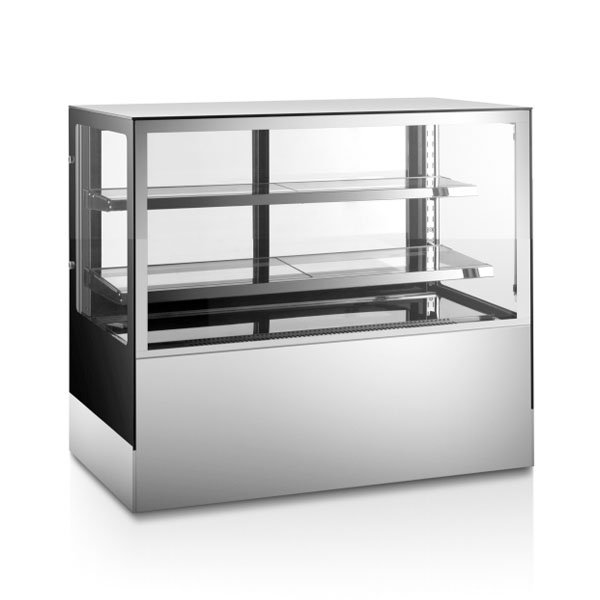

Refrigerated Cake Display Case with LED Lighting and Double Tempered Glass
Present cakes, pastries and chilled desserts with a clear view from the front and the sides. This floor standing refrigerated cake display case has double tempered glass and bright LED lighting on every shelf and on the top. A digital controller holds the temperature between 2°C and 8°C, so it works as a reliable cake fridge and pastry refrigerator for daily trading.
Request a Quote | Chat on WhatsApp
Product Overview
The FT-Z series is a refrigerated bakery display case for shops that sell cakes, pastries and desserts. Two adjustable glass shelves let you arrange cakes, mousse cups, sandwiches and desserts of different heights, and the glass on several sides gives customers a wide view of everything on display.
Whether you need a bakery display case for a retail shop, a pastry display case for a café or a dessert display case for a restaurant, the four sizes cover small to large display needs. Each model is a complete bakery refrigerator with its own cooling system, so no separate refrigeration equipment is required.
Key Features
| Feature | Benefit |
|---|---|
| LED lighting on each shelf and top | Shows cakes and desserts clearly and attractively |
| Double tempered glass | Good insulation and safety |
| 2 adjustable glass shelves | Flexible layout for products of different heights |
| Digital temperature control and display | Easy setting and monitoring within 2-8°C |
| Ventilated cooling system | Even temperature distribution across shelves |
| Automatic defrost | Less manual maintenance |
| 4 castors, 2 with brakes | Easy to move and stable when locked |
| R290 refrigerant | Natural refrigerant with low environmental impact |
Optional Configuration
Heating glass is available as an option. It helps keep the glass clear in humid environments, so products stay visible. Please mention this option when requesting a quote.
Technical Specifications
| Specification | FT-360Z | FT-510Z | FT-610Z | FT-710Z |
|---|---|---|---|---|
| Gross Capacity | 360 L / 12.71 cu.ft | 490 L / 17.3 cu.ft | 615 L / 21.72 cu.ft | 745 L / 26.31 cu.ft |
| Temperature Range | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) | 2-8°C (35.6-46.4°F) |
| Rated Input Power | 380 W | 420 W | 450 W | 520 W |
| Refrigerant | R290 | R290 | R290 | R290 |
| Climate Class | 4 | 4 | 4 | 4 |
| Overall Dimensions (mm) | 900 × 700 × 1200 | 1200 × 700 × 1200 | 1500 × 700 × 1200 | 1800 × 700 × 1200 |
| Overall Dimensions (inch) | 35.4 × 27.6 × 47.2 | 47.2 × 27.6 × 47.2 | 59.1 × 27.6 × 47.2 | 70.9 × 27.6 × 47.2 |
| Net Weight | 115 kg / 253.5 lbs | 159 kg / 350.5 lbs | 158 kg / 347.6 lbs | 225 kg / 496 lbs |
| Gross Weight | 140 kg / 308.6 lbs | 189 kg / 416.7 lbs | 189 kg / 415.8 lbs | 265 kg / 584.2 lbs |
| Package Size (mm) | 970 × 770 × 1310 | 1270 × 770 × 1310 | 1570 × 770 × 1310 | 1870 × 770 × 1310 |
| Package Size (inch) | 38.2 × 30.3 × 51.6 | 50 × 30.3 × 51.6 | 61.8 × 30.3 × 51.6 | 73.6 × 30.3 × 51.6 |
| 20′ Container | 17 | 12 | 10 | 9 |
| 40′ Container | 35 | 27 | 21 | 18 |
| 40′ High Cube | 70 | 54 | 42 | 36 |
Applications
This glass bakery display case suits many food service and retail settings:
It displays whole cakes and slices, cheesecakes, mousse cakes, pastries, tarts, puddings, dessert cups and sandwiches.
Frequently Asked Questions
What temperature range does the refrigerated cake display case support? It operates between 2°C and 8°C (35.6°F to 46.4°F). This suits cakes, mousse, pastries and other chilled desserts.
Is this a refrigerated or non-refrigerated display case? It is a refrigerated display case with an active cooling system. It is not a non-refrigerated or ambient display unit.
What is the difference between the four models? They share the same features, depth (700 mm) and height (1200 mm). They differ in width (900 to 1800 mm), capacity (360 to 745 L) and power (380 to 520 W).
Is this cake display fridge fan-cooled? Yes. It uses a ventilated cooling system with automatic defrost for even temperature distribution.
Can I use it as a dessert fridge or pastry fridge? Yes. Besides cakes, it suits any chilled bakery or dessert item that needs storage at 2-8°C.
Is it suitable for a coffee shop or bakery? Yes. The double glass and LED lighting make it a good fit as a bakery refrigerator or coffee shop display case where products need to be seen from the customer side.
Can the cabinet be moved easily? Yes. Four castors, two with brakes, let you move it for cleaning and lock it in place during use.
Is anti-fog glass available? Yes. Heating glass is available as an option.
How can I get a quote? Send your requirements through our contact form or message us on WhatsApp. Our team will reply with pricing and shipping details.
Looking for more refrigerated display equipment? Browse the full range at Yida Catering Equipment, or contact our team for a quotation.
