Front Curved Glass Floor Standing Refrigerated Cake Showcase YD-FT-Y Series

Front Curved Glass Floor Standing Refrigerated Cake Showcase YD-FT-Y Series

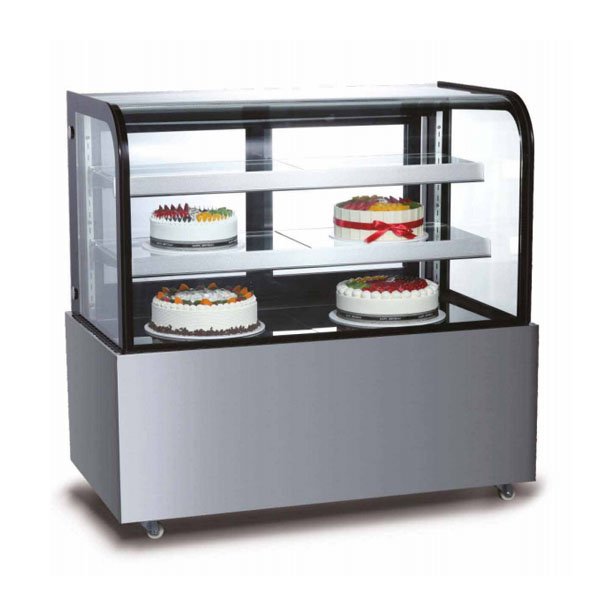

Present cakes, pastries and chilled desserts with the YD-FT-Y series floor standing cake showcase. The front curved glass, LED lighting on every shelf and the top, and a ventilated cooling system keep your products visible and fresh. The series suits bakeries, cafés, restaurants, hotels and dessert shops.

Available models: YD-FT-270Y, YD-FT-370Y, YD-FT-470Y and YD-FT-570Y.

Key Features

Front curved glass for a wide, clear view of the display
Brilliant internal LED lighting on each shelf and the top
Double tempered glass
2 adjustable glass shelves
Digital temperature control and display
Temperature range of 2–8°C (35.6–46.4°F)
Ventilated cooling system
Automatic defrost
R290 refrigerant
4 castors, 2 with brakes

Product Description

The YD-FT-Y series floor standing cake showcase is designed for food service businesses that need to keep cakes chilled while displaying them attractively. The front curved glass and LED lighting give customers a clear view of cakes, mousses, cheesecakes and pastries.

A ventilated cooling system circulates cold air through the cabinet and holds the temperature between 2°C and 8°C (35.6°F–46.4°F). A digital controller shows the cabinet temperature, and the automatic defrost function reduces routine maintenance.

Double tempered glass provides strength and thermal insulation. Each shelf and the top have their own LED lighting, so every tier is well lit. The two glass shelves are adjustable, so you can arrange the interior for whole cakes, slices or boxed products.

The series comes in four widths, from 906 mm to 1806 mm (35.7″–71.2″), with gross capacities from 295 L to 600 L. All models share the same height of 1212 mm (47.8″) and depth of 683 mm (26.9″).

Four castors, two of them with brakes, let you move the unit and clean underneath it.

Optional Upgrades

Air duct outside the glass to remove fog
Heating glass
Artificial stone frame

Applications

Bakeries, cake shops, cafés, restaurants, hotels, supermarkets, convenience stores, dessert shops and catering businesses.

Specifications

Model	YD-FT-270Y	YD-FT-370Y	YD-FT-470Y	YD-FT-570Y
Gross Capacity	295 L / 10.42 cu.ft	400 L / 14.13 cu.ft	500 L / 17.66 cu.ft	600 L / 21.19 cu.ft
Temperature Range	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)	2–8°C (35.6–46.4°F)
Rated Input Power	480 W	490 W	490 W	500 W
Refrigerant	R290	R290	R290	R290
Climate Class	4	4	4	4
Overall Dimensions (mm)	906 × 683 × 1212	1206 × 683 × 1212	1506 × 683 × 1212	1806 × 683 × 1212
Overall Dimensions (inch)	35.7 × 26.9 × 47.8	47.5 × 26.9 × 47.8	59.3 × 26.9 × 47.8	71.2 × 26.9 × 47.8
Package Dimensions (mm)	1025 × 765 × 1310	1325 × 765 × 1310	1625 × 765 × 1310	1925 × 765 × 1310
Package Dimensions (inch)	40.4 × 30.2 × 51.6	52.2 × 30.2 × 51.6	64.0 × 30.2 × 51.6	75.8 × 30.2 × 51.6
Net Weight	131 kg / 288.2 lbs	155 kg / 341.1 lbs	182 kg / 400.4 lbs	230 kg / 506 lbs
Gross Weight	151 kg / 332.2 lbs	188 kg / 413.6 lbs	230 kg / 506 lbs	258 kg / 567.6 lbs
20′ Container	16	12	10	8
40′ Container	32	25	21	18
40′ Container (High Cube)	64	59	42	36

Frequently Asked Questions

What temperature range does the cake showcase maintain? The YD-FT-Y series maintains 2–8°C (35.6–46.4°F), suitable for most cakes and chilled desserts.

What refrigerant does it use? It uses R290 refrigerant.

Does the showcase have automatic defrost? Yes. It features automatic defrost and a ventilated cooling system.

How many shelves are included? Two adjustable glass shelves are included as standard.

Can glass fogging be reduced? Yes. An air duct outside the glass and heating glass are available as options.

Can the showcase be moved easily? Yes. It has 4 castors, 2 of which have brakes.

What sizes are available? Four models are available: YD-FT-270Y (295 L), YD-FT-370Y (400 L), YD-FT-470Y (500 L) and YD-FT-570Y (600 L).

How can I get a quote? Send us your requirements through our inquiry form or message us on WhatsApp, and our team will reply with pricing and shipping details.
